Deeply Rich sound and clear tone
New Triple Mixed re-cable
New conductor created from selected high-purity wire
33 cores per core, 4 cores structure brings out a rich sound with depth and a high range that is transparent and draws out a low range with a quick response and a lively feeling, over all bands.
High Satisfaction Heat Shrink Tube
PVC with many excellent characteristics such as flexible, wear resistance, elasticity and toughness.
It can reduce touch noise with comfortable.
Cable configuration with minimal degradation of audio signal
It consists of four cores separated from each other and soldered parts to prevent crosstalk between cables.
Clear spatial representation and low-frequency reproduction with distortion suppressed even when unbalanced.
Minimize transmission loss
Y parts soldering, which induces electrical resistance, is used in the bonding process for an ideal design that does not change the original characteristics of the cable.
High quality plug
The plug is made of 24K gold plating in Japan, providing a stable connection environment and high conductivity. In addition, after flash plating, special treatments have been added to prevent problems such as oxidative corrosion in the long run.
NOBUNAGA Labs original shell is matte black design, simple and luxury.
Original MMCX connector
The connector part is 24K gold plated to suppress contact resistance and exhibit high electrical conductivity. In addition, the molding process inside the shell minimizes disconnection problems.
The NOBUNAGA Labs shell parts have a slit design, with black and red lines printed on the grooves so that they do not peel off after long use. (L side: black / R side: red)
Y parts with stability
The Y parts and cable slider are anodized in black aluminum to emphasize simplicity and luxury.
It is easy to use because its length can be adjusted even when moving.

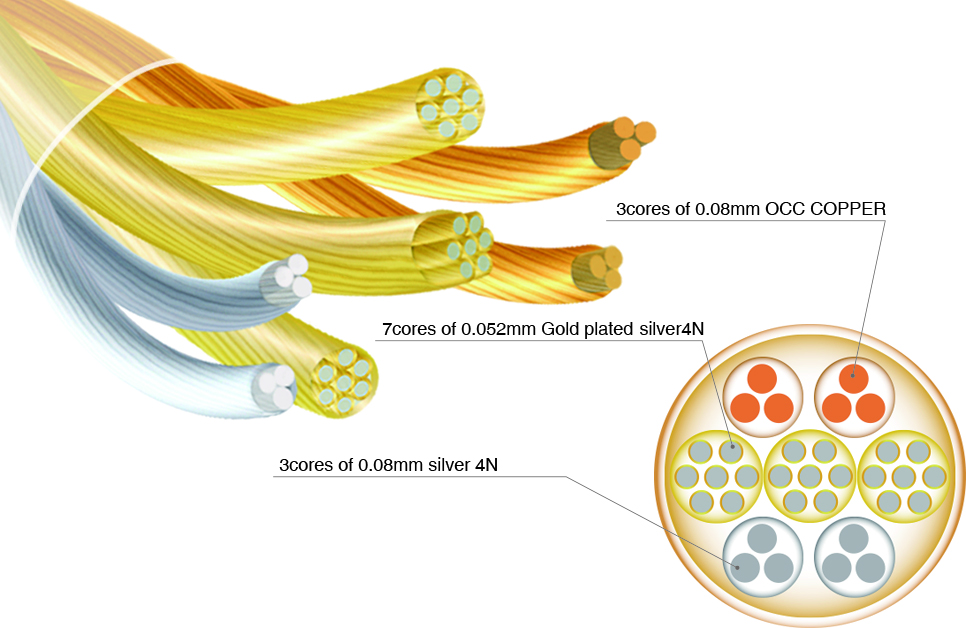

・ Cable: 4cores of Mixed cable
・ Material per 1 wire : Gold plated 4N silver cable + 4N pure silver cable+ 6N OCC
・ Cable length: 120cm
・ Ear hook: No wire
・ Cable slider: black slider
・ Plug: 3.5mm 3pole plug (NLP-PRO-TP3.5)
・ Connector : MMCX (NLP-MMCX-DIY)
・ Impedance: Less than 0.3Ω
・Cryogenic processed : Put in -156 ºC low temperature for 72 hours.
・ Campfire Audio: ORION・POLARIS・LYRA II・JUPITER・DORADO・ANDOROMEDA・VEGA・COMET・ATLAS・SOLARIS・IO・POLARIS Ⅱ
・ Ultimate ears：UE900（S）
・ Astell&Kern ：AK T8iE・AK T8iE Mk II
・ DUNU：TITAN 3・TITAN 5
